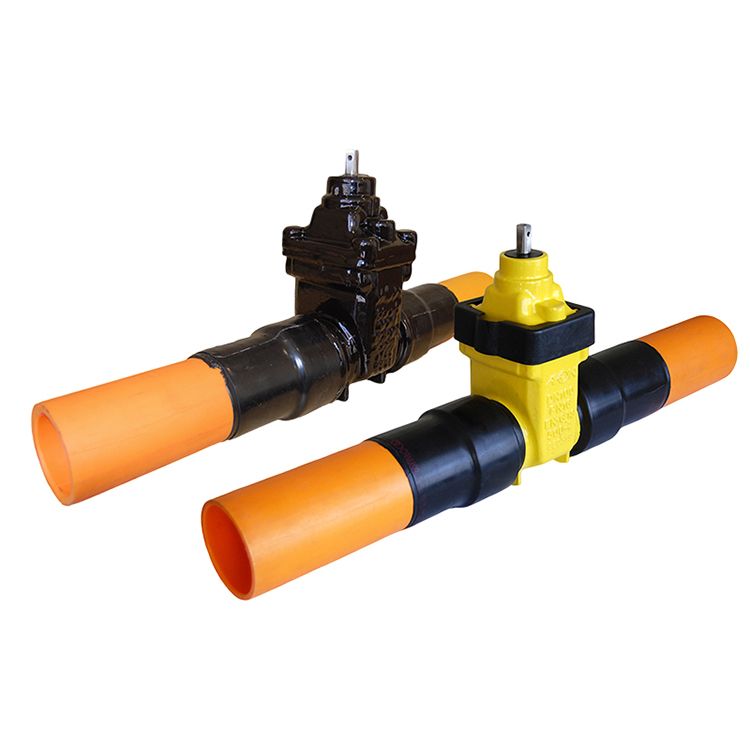

OptiValve with PE tail - Gas gate valve

Our unique range of Type A OptiValve, fitted with polyethylene (PE) tails, specifically designed for polyethylene gas pipeline networks.

Specially constructed with factory connected PE pipe spigots at either side of the valve body, the OptiValve with PE tail is the ideal solution for PE gas pipeline installations, as it is ready to join, using electrofusion fittings for a fully welded pipe system, without the need for additional mechanical components.  Ideal in pipeline extension or diversion projects.  Available to fit PE pipelines 63 mm to 315 mm.

Valve type Type A
Diameter range DN50 - DN300 (63 mm - 315 mm)
Maximum operating pressure 10 bar / PN10
7 bar for double-block-and-bleed - optional
Approvals KIWA, BSI Kitemark, CE (PED 97/23/EC), GIS/V7
Coating Epoxy 250 μm FBE coating, external and internal
PUR available upon request
