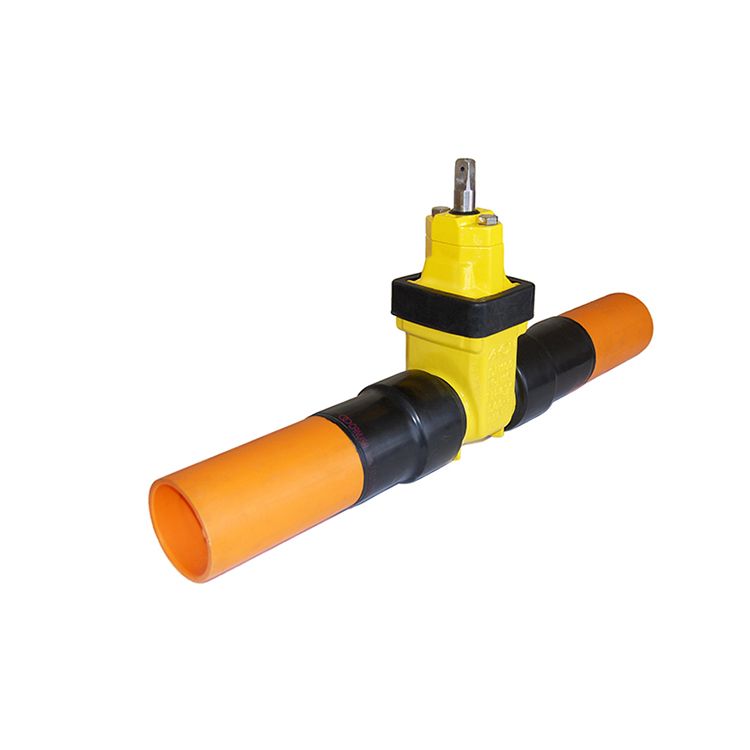

Our state of the art range of Type B OptiValve Plus, fitted with PE tails, are specifically designed for polyethylene gas pipeline networks.
Specially constructed with factory connected PE pipe lengths at either side of the valve body, the OptiValve Plus with PE tail is the ideal solution for PE gas pipeline valve installation requirements, as it is ready to joint, using butt-fusion or electrofusion, without the need for additional mechanical components. Ideal in pipeline extension or diversion projects. Available to fit PE pipelines 63 mm to 315 mm.
| Valve type | Type B |
|---|---|
| Diameter Range | 63 mm - 315 mm |
| Maximum operating pressure | 10 bar / PN16 for pipe PE100 7 bar for double-block-and-bleed - optional |
| Approvals | BSI Kitemark, CE (PED 2014/68EU), KIWA, INIG, SII Russian Certificate of Conformity |
| Coating | 250 μm FBE coating, external and internal PUR available upon request |
