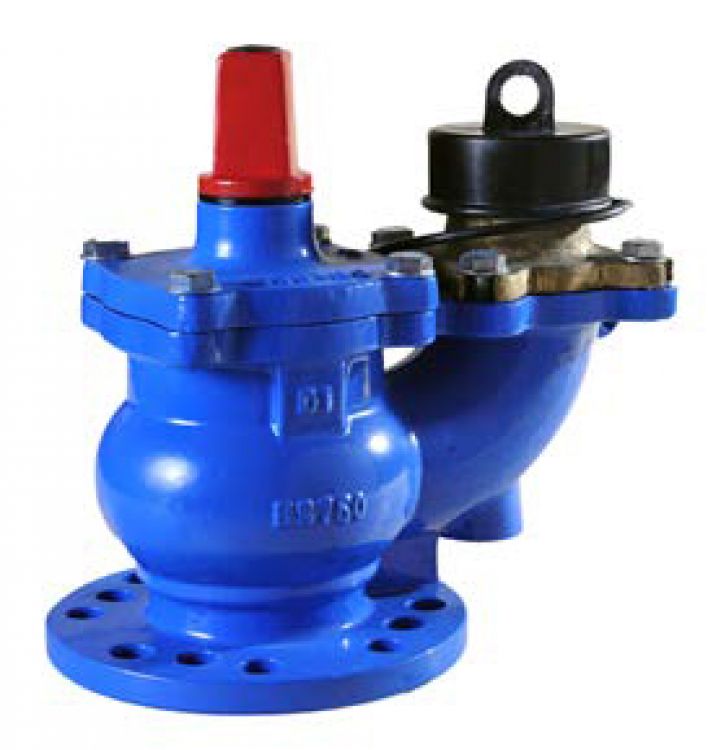

The Aeon Type II fire hydrants are specifically designed to provide the fire authorities, contractors and utility operators a direct connection point to the water supply.
Ideally suited to operate with our range of valves for fire protection for quick access to a water supply when required.
| Hydrant Type | BS750 Type II |
|---|---|
| Diameter Range | DN80 |
| Maximum Operating Pressure | 16 bar / PN16 |
| Working Temperature | -10°C to +60°C |
| Construction | Manufactured to BS 750 Type II Hydrostatic tests: 17.6 bar (seat) and 24 bar (full body), BS EN 14339 |
| Connection | Inlet: Flange DN80 drilled to PN10, PN16 (EN 1092-2), B10 Table D/E and ANSI 125# Outlet: 2½” London Round Thread to BS 750 |
| Coating | Blue FBE coating external and internal WRAS approved, compliant to BS EN 14901:2006, 300 μm min. WIS-4 52-01 Class B |
To view all our downloadable resources visit our downloads page.
