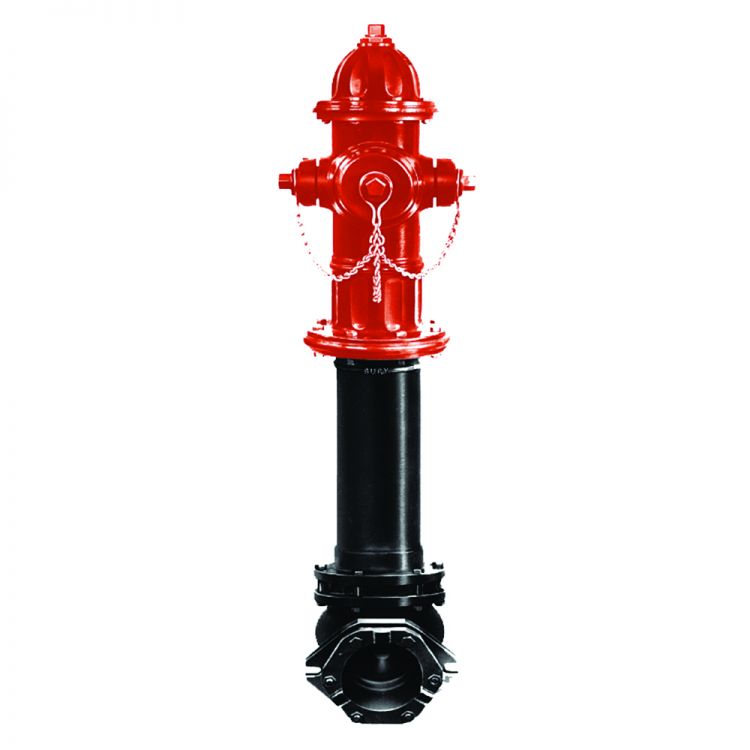

Dry barrel fire hydrant

Specifically designed for active fire protection and quick access to a water supply, our dry barrel fire hydrants are ideally suited for areas exposed to freezing temperatures.

Hydrant Type Dry Barrel Fire Hydrant
Diameter Range 6"
Maximum Operating Pressure 250 PSI / 17 bar
Working Temperature -10 °C to 82 °C
Construction Complies with ANSI / AWWA C502
Connection Inlet: 6” mechanical joint designed to ASME B16.1 Class 125 or AWWA C111
Outlets: (1) 4,5” Pumper Nozzle; (2) Hose Nozzles 2,5” .
Coating 300 μm FBE coating, external and internal
