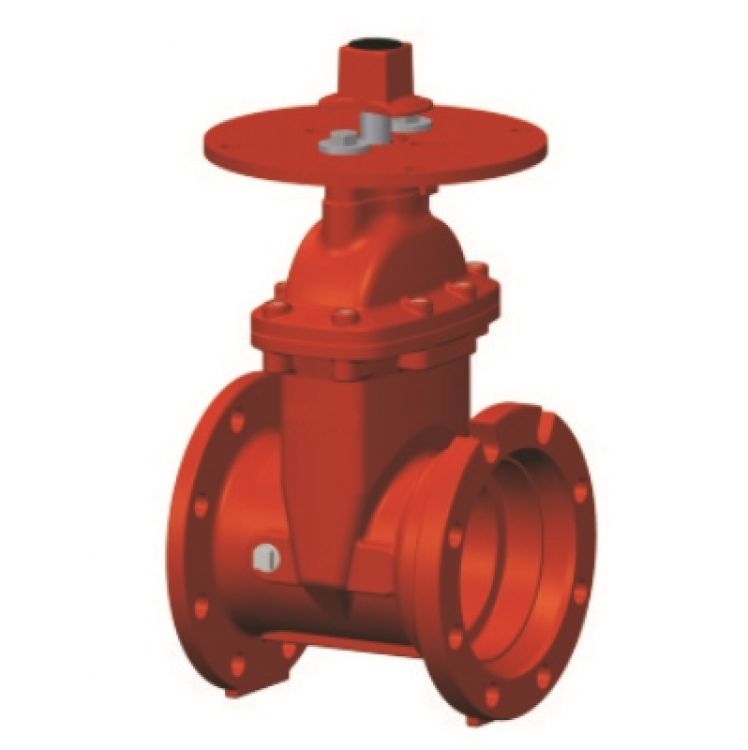

A range of reliable non-rising stem resilient seated gates ideally suited for fire protection applications. Supplied with a flanged and a mechanical joint connection for quick and easy installation within a pipeline.
Specifically manufactured with an EPDM encapsulated wedge and dual seals for maximum leak-tightness, corrosion protection, the wedge design prevents any build up of debris at the bottom of the valve seat. Available in diameters 2.5 - 12".
| Diameter range | 3” - 12” |
|---|---|
| Connection | Flanges to ANSI B16.1 Class125 |
| Maximum Operating Pressure | 300 PSI / 20,7 bar for 2,5”-12” |
| Maximum Working Pressure | 42 °F to 180 °F (6 °C to 82 °C) |
| Coating | 300 μm FBE coating, external and internal to AWWA C550 |
| Certification | UL Listed and FM Approved |
