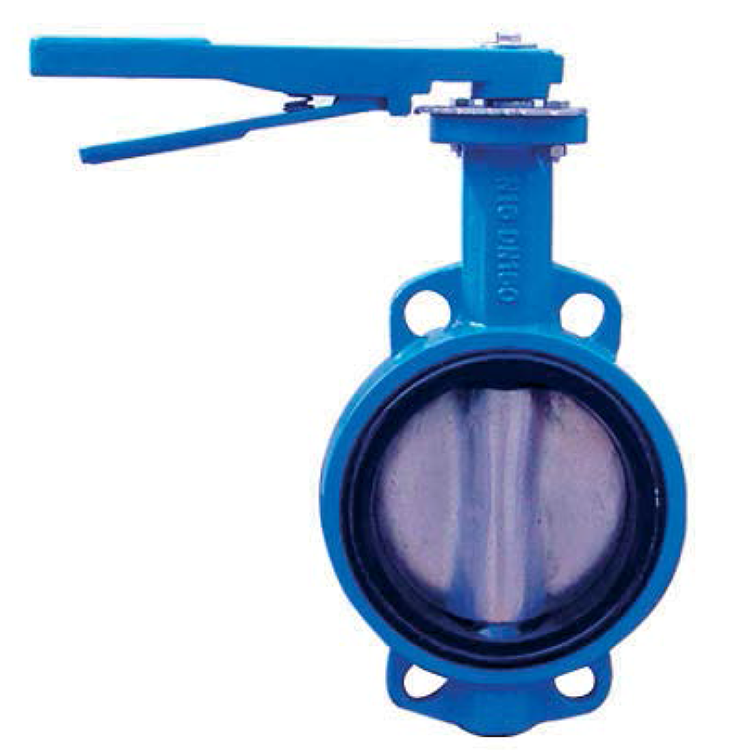

Available with various disc and seat material variations to suit a wide range of applications, the water butterfly valves should be installed with their shaft in the horizontal position with the lower edge of the disc opening downstream.
Fitted with a replaceable rubber liner that fully isolates the body for maximum corrosion resistance.
|Valve type||Wafer butterfly valve|
|Diameter Range||DN50 - DN1200|
|Maximum operating pressure||16 bar / PN16|
|Coating||300 microns FBE|
|Flange||EN 1092-2 PN10 & PN16|
