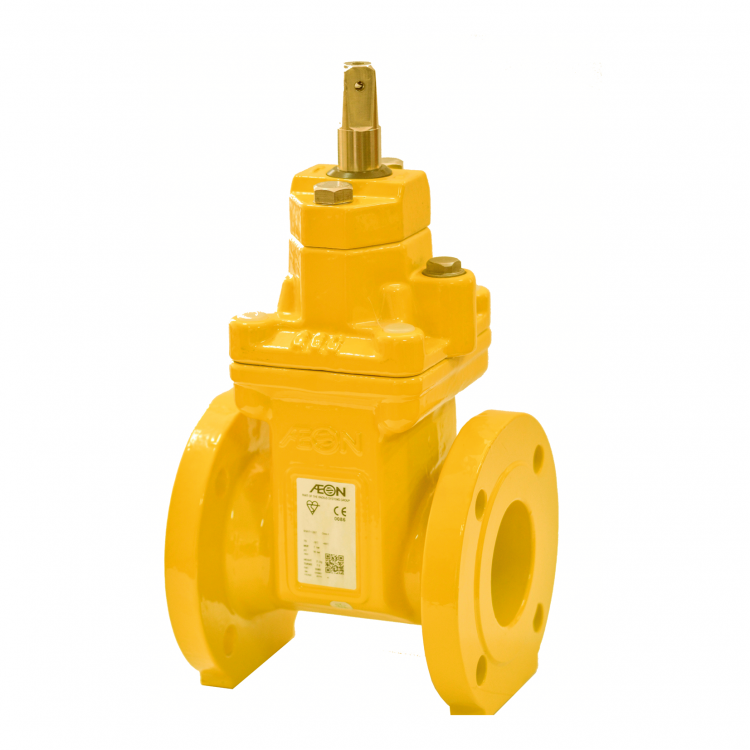

OptiValve Plus ANSI - Gas gate valve

Our state of the art range of Type B ANSI valves are an innovative solution for all your gas pipeline requirements.

Manufactured from high grade components with high performance features for strength and increased valve lifetime, our ANSI OptiValve Plus are designed with a 3-part casting, which allows parts to be replaced on a live pipeline without the need to close the valve.  The fully NBR encaspsulated patented double seated wedge within the valve, offers optimum flow control to preserve the integrity of your pipeline.

Valve type Type B
Diameter range DN50 - D300
Maximum operating pressure 7 bar double block and bleed with vent plug
Coating 250 μm FBE coating, external and internal
Flange ANSI B16.5 150#RF
Approvals BSI Kitemark, CE (PED 97/23/EC)
Options - Prepared for actuator
- With actuator
