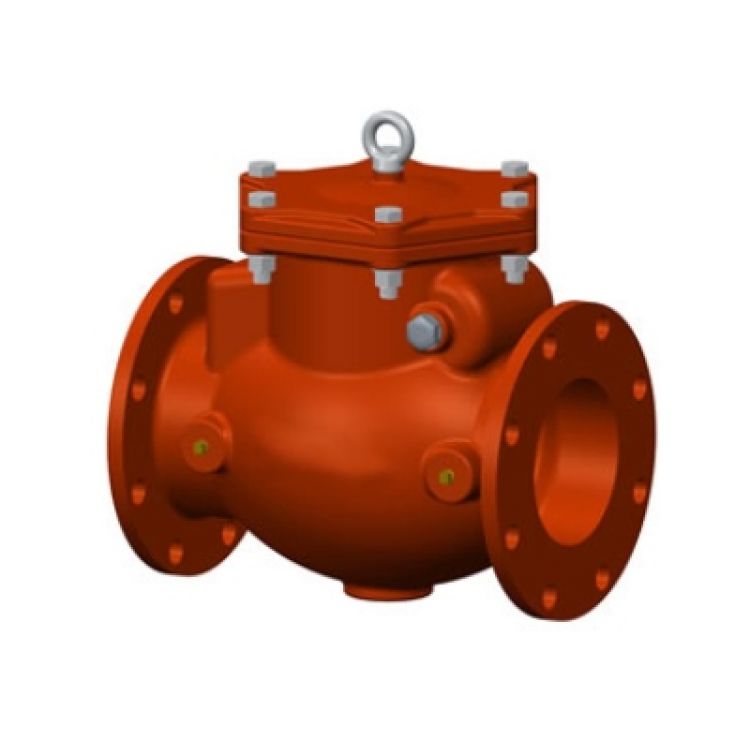

Swing Check Valve - Flanged ends

The Aeon swing check valves with flanged ends are ideal for use in sprinkler systems for fire protection.

Quick and easy to install, they can be fitted in horizontal and vertical positions and are used to prevent back flow within the pipe system.

Diameter range 2” - 12”
Connection Flanges to ANSI B16.1 Class125
Maximum Operating Pressure 300 PSI / 20,7 bar for 2”-12”
Maximum Working Pressure 42 °F to 180 °F (6 °C to 82 °C)
Coating 300 μm FBE coating, external and internal to AWWA C550
Certification UL Listed and FM Approved
